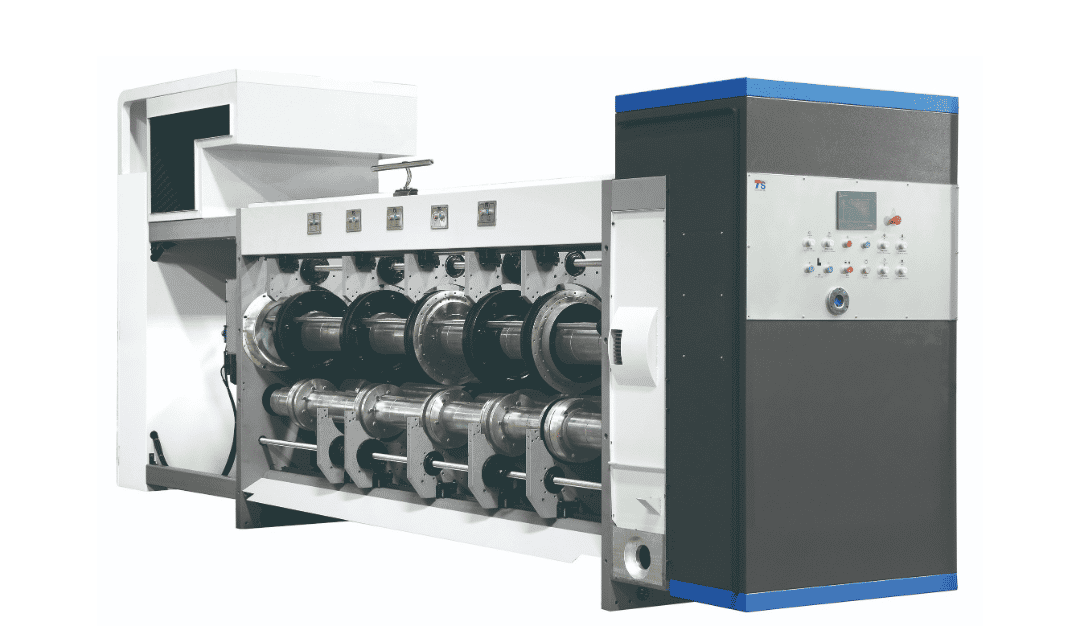

TSG-2S WHOLE VACUUM TRANSFER HIGH SPEED PRINTER SLOTTER DIE CUTTER MACHINE  (FULL COMPUTER CONTROL)

Performance Characteristics of The Whole Machine

Feeder Unit

• Can be continuous feeding and skip feeding.
• Inverter control the vacuum air and presure,to follow the cardboard size.
• Can adjust the feeding proceding to reduce the presure of pushing roller.
• Computer control the gap of pushing rollers and the position of both sides guard.
• Backside stacker computer control front and backside,increse the speed of set up.
• Two wire brush and fan cleanning the scraps of paper in surface of the cardboard.To increase the printing quality.
• The adjustment of the gap of pushing rollers adopts computure control,between 0-12mm.
• The power transmission of the pressure roller adopts CAM bearing transmission to reduce wear and make the transmission more stable.
• Main engine motor start protection device.
• Feeder Unit and Printer Unit adopt encoder making zero.
• Ordinary carton producing can use making zero automatic device.The correct position can be adjusted by test printing of few cardboards.In order to
  not waste cardboard.

• The printing rollers are made of high quality steel, hard chrome plating, surface grinding.
• Pedal switch control the printing roller turning forward or back off when install the printing sheet.
• Adopts vacuum transfer (The surface of the transfer wheel is made by ceramic, in order to increase the rub and using life). Can transfer the cardboard without transfer roller.
• The adjustment of the Printing presure rollers space adopts computure control, between 0-12mm.
• Immobilization device of the printing phose. Electromagnetic clutch brake type brake mechanism.The Brake mechanism to limit gear rotation,
• Maintain the fixed position of the original gear when the units seperate or adjust the phose and cleaning.
• Horizontal phase using computer control, ±10mm.
• Automatic reset system after cleaning plate.
• Pneumatic single diaphragm pump, Ink supply stability, Operationand maintenance is simple.
• Ink tank is placed under the Single blade ink supply system.
• Automatic switching cleaning device makes ink recycling more thorough.
• Fast change device is adopted in the printing unit for changing the flexo plate.

  ---

Slotter Unit

• Adopt servo adjustmert ----fast, exact, and stable.
• Creaser shaft and Slotter shaft adopt high quality steel, hard chrome plating, surface grinding.
• The cardboard is not easy to be broken after creased by the first creaser wheel.
• The upper creaser wheel is wrapped with rubber, avoid to damage the cardboard.
• The gap of pre-creaser and creaser wheels adopt computerized and digita control.
• The interval of slotter shaft adopt motorized control. the adjustment range is 0 -12mm.
• The upper blade tool base and the lower blade tool base adopt the drive shaft linkage, keep the upper and lower blades alignment while moving,and extend the tool life.
• Pre-creaser wheel, pre-creaser wheel, creaser wheel and slotter tool base displacement position, adopt computerized and electric digital control.
• Collision protect device is adopted for slotter blade height, avoid to damage the machine.
• Elastic corner cutting blade structure, can cut 3 layers ans 5 layers cardboard without adjustment, easy operation

  ---

Die cutter Unit Unit
