TSG3-Whole vacuum transfer high speed corrugated carton machine

TSG-3 AUTOMATIC WHOLE VACUUM TRANSFER HIGH SPEED PRINTER DRYER DIE CUTTER MACHINE

Performance Characteristics of The Whole Machine

The automatic whole vacuum transfer printer dryer die cutter machine adopts advanced vacuum transfer printing technology, dryer die cutting in one, high-definition full plate printing, can print in white top coated cardboard, high automation and high efficiency production.

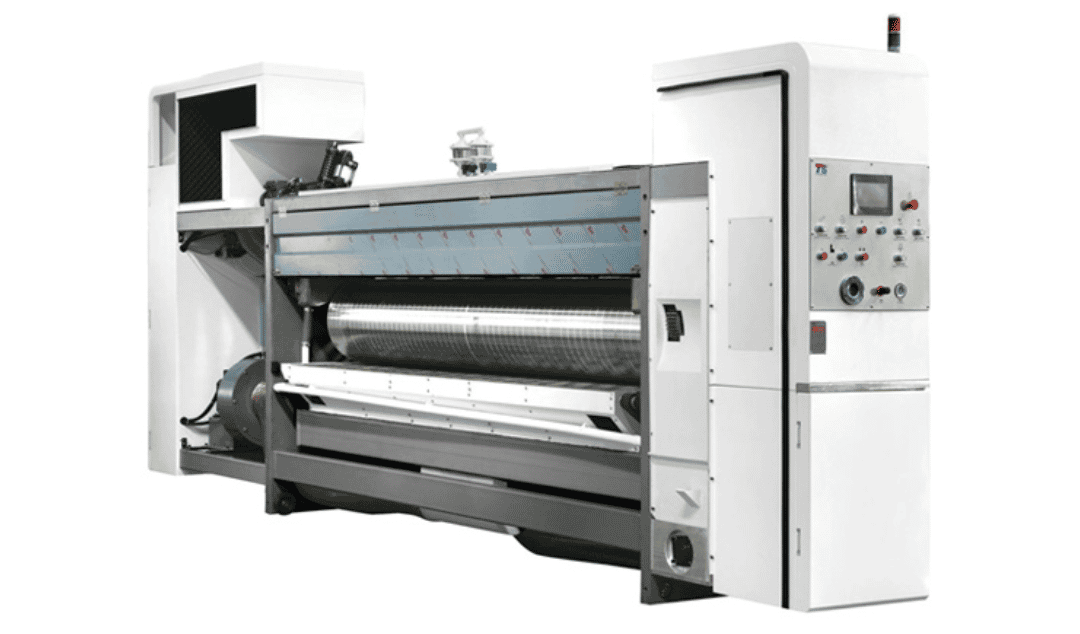

Feeder Unit

• The printing rollers are rollers are made by high quality steel, hard chrome plating,surface grinding.
• Pedal switch control the printing roller turning forward or back off when install the printing sheet.
• Adopts vacuum transfer(The surface of the transfer wheel is made by ceramic,in order to increase the rub and using life).Can transfer the cardboard without transfer roller.
• The adjustment of the  Printing pressure rollers space adopts commuter control,between 0-12mm.
• Immobilization device of the printing phase.Electromagnetic clutch brake type brake mechanism.The Brake mechanism to limit gear rotation,Maintain the fixed position of the original gear when the units separate or adjust the phase and cleaning.
• Horizontal phase using computer control,±10mm.
• Automatic reset system after cleaning plate.
• Pneumatic single diaphragm pump,Ink supply stability,Desperation maintenance is simple.
• Ink tank is placed under the Single blade ink supply system.
• Automatic switch cleaning device, so that ink recycling more thoroughly.
• Servo motor is adopted for phase adjustment

Adopt ceramic anilox

Slotting Unit

• The slotting unit has solid steel pressure shafts and slotting knife shafts that are ground and hardened with chrome plating.
•  The first pressure shaft ensures that the paperboard is not easily broken after pre-pressing.
• The upper pressure shaft is wrapped with Urethane to prevent damage to the paperboard.
• The clearance of the pressure shaft and pre-pressing wheel is controlled by computer and electric digital control.
• The clearance of the slotting knife shaft is adjusted by electric control with a range of 0-12mm.
• The power transmission of the pressure roller is driven by a camshaft bearing to reduce wear and make the transmission smoother.
• The upper and lower knife seats are linked by a transmission shaft to keep the upper and lower knives aligned when moving, thus prolonging the life of the tool.
• The lateral position of the pre-pressing wheel, pressure wheel and slotting knife seat is controlled by computer and electric digital control. The slotting knife box has an anti-collision protection device to prevent damage to the machine.

The elastic cutting angle knife has a structure that can cut three-layer and five-layer paperboard without adjustment, which is convenient to operate.

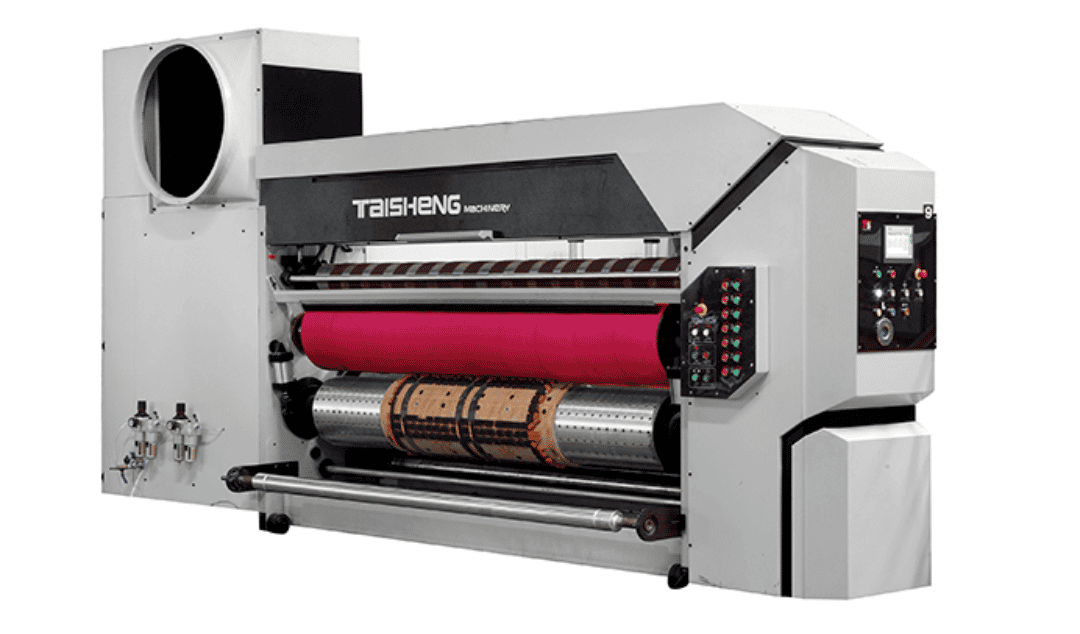

Die cutter Unit

• The die roller is made of high quality steel, hard chrome plating,surface grinding.
• Balance correction,Increase running stability .
• The anvil roller is made of high quality steel, hard chrome plating,surface grinding.
• Balance correction,Increase running stability .
• Computer and digit control system are adopted for the  space of pushing roller.
• Planetary gear structure.
• Computer and digit control system are adopted for the die cutting phase,can adjust circle.
• Transverse phase using computer and electric digital control, control range ±10mm

Anvil roller compensation adopts servo motor,to control the speed of the anvil roller.Compensation range ±3mm.

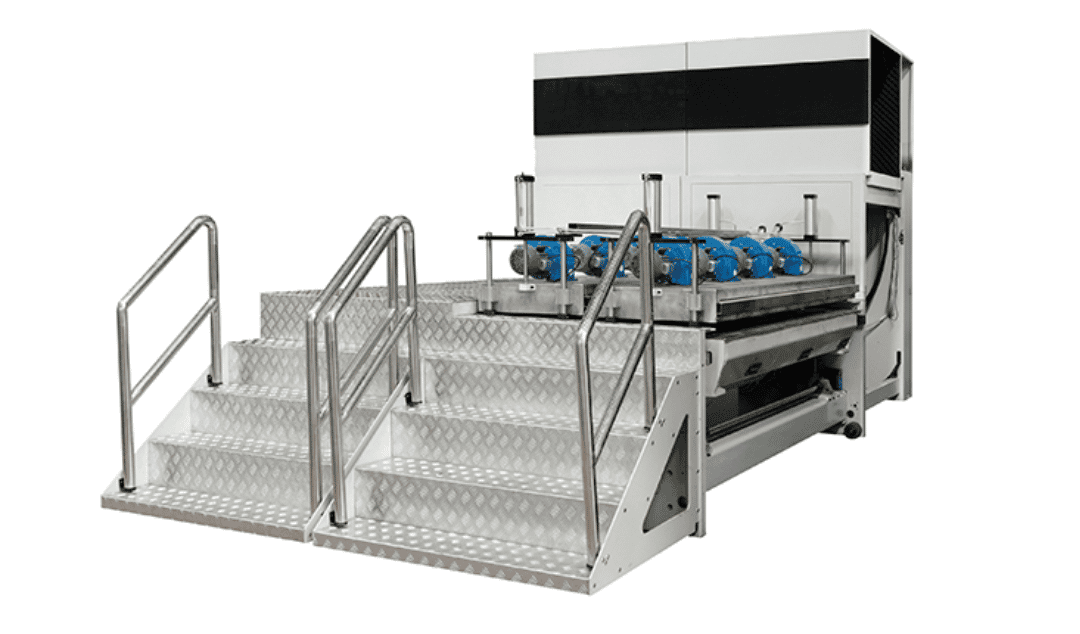

Dry Unit

• Vacuum adsorption roller transfer, roller rows of staggered arrangement, to strengthen the stability of the board transfer .
• The air door can be adjusted automatically according to the cardboard different size.
• Can make selection of hot air / infrared /IR/ UV three kinds of drying system based on the configuration.
• The drying system adopts PLC program automatic control.
• Automatic control of temperature control, fault alarm protection, automatic alarm and
• fault status display.
• Drying system adopts host dual protection control start and close.Completely solve the combustion and damage problem of the printing products,because of UV/IR lamp direct irradiation too long time when the machine stop working
